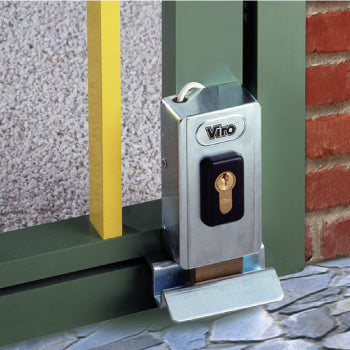

V06 (1.7918) electric lock is suitable for inside or outside manual or automatic doors and pedestrian or drive-through gates and is interchangeable with the V96 (1.7917) electric lock.
It is standard supplied with the service function and, by simply removing an internal part, can also have the security function. its small size and the floor striker provided make it ideal for vertical installation on a narrow frame; it can however also be mounted horizontally using an optional striker.
Installation: vertical or horizontal
- service (standard): the lock opens with the electric impulse and only resets once the door/gate has been opened and then closed. It is therefore suitable for use with door closers and/or all types of automation systems.
- security (selected by removing an internal part): the lock opens only when the electric impulse and manual or automatic pressure is applied simultaneously. It is therefore not advisable to use it with a door closer and/or unsuitable for automation systems.
Double coil: which distributes the load uniformly
Power supply: standard 12V A.C.
Case: one-piece galvanized steel
Cover: galvanized steel
Rotating dead-bolt: solid brass
Cylinder: double or half profile cylinder (SOLD SEPARATELY)
Floor striker: galvanized steel, to be cemented to the ground or welded to the lower frame of the gate.
Supplied with: galvanized steel floor striker (9986), nylon ring nut and plug, passivated steel support for profile cylinder and fixing screws.
